다아라몰 견적거래 가이드
- 1. 견적거래란?
- 판매 제품에 대해 구매사와 판매사간 거래에 최적화되어 쉽고 편리하게 이용하실 수 있는 서비스입니다.
- 2. 견적 거래 절차 안내
Gwolian
Vertical Type Wire Drawing Machine(Ribbed Wire) - 수직형 철사제조 머신
견적거래 제품
Online Inquiry
- Simple Descaling Machine DS-S12
- Roller Casselle Type A (VRO-800/640)
- Drum aopts the high efficient cooling system
- Equipment for Industrial Safety is CE certificated
- 최소 구매 수량 : 1
- 주문 수량 단위 : 1
Gwo Lian Machinery 제조사
문의전화 : 886-7-9515858 제조사 ‘Gwolian’ 에서 직접 판매하는 제품입니다.
Gwo Lian Machinery
Vertical Type Wire Drawing Machine(Ribbed Wire) - 수직형 철사제조 머신
 - 수직형 철사제조 머신', 'http://mall.daara.co.kr/product/view.html?p_seq=66789','//pimg.daara.co.kr/inc/thumb.php?src=%2Fmall%2Fphoto%2F201807%2F1530515999319_21.png&cw=225&ch=195','#다아라몰');)
 - 수직형 철사제조 머신', 'http://mall.daara.co.kr/product/view.html?p_seq=66789','//pimg.daara.co.kr/inc/thumb.php?src=%2Fmall%2Fphoto%2F201807%2F1530515999319_21.png&cw=225&ch=195');)
 - 수직형 철사제조 머신', '//pimg.daara.co.kr/inc/thumb.php?src=%2Fmall%2Fphoto%2F201807%2F1530515999319_21.png&cw=225&ch=195');)
 - 수직형 철사제조 머신', 'http://mall.daara.co.kr/product/view.html?p_seq=66789','//pimg.daara.co.kr/inc/thumb.php?src=%2Fmall%2Fphoto%2F201807%2F1530515999319_21.png&cw=225&ch=195');)
브랜드소개
제품정보

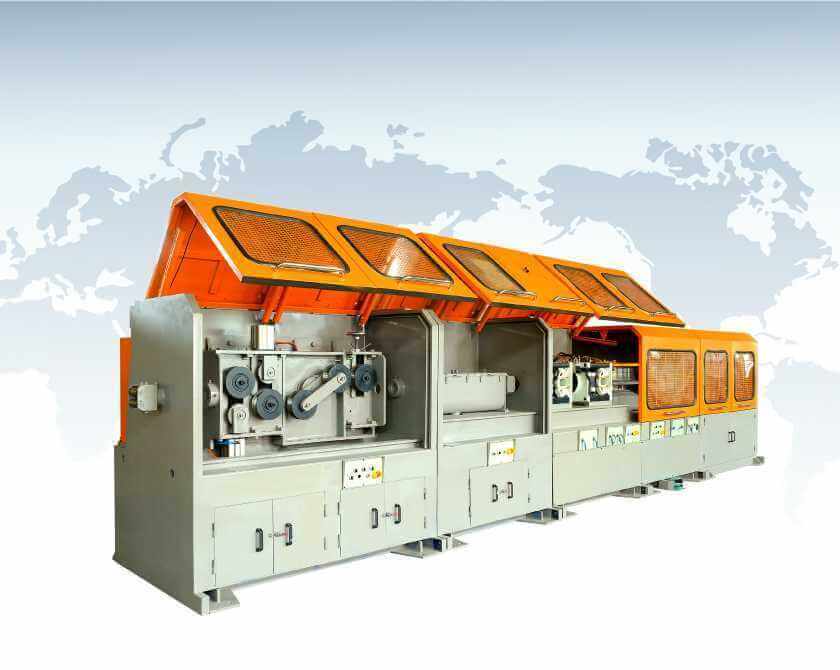

Vertical Type Wire Drawing Machine(Ribbed Wire)
1. Simple Descaling Machine DS-S12:
2. Attached with two sets of Roller Feeders controlled by air pressure have straightening function and could feed wire rod to drawing machine.
3. Inline Lubricantion System in auto circulation device with mixer in the tank.
4. Roller Casselle Type A (VRO-800/640)
5. Drum(Model:Φ800mm / Φ640mm) : Adopts two layers' design; the first layer's function is for wire drawing with roller castelle,
while the second layer's function is for straigthening wire rod with rollers device via "X" "Y" cross correction dircetion.
6. Surface harness of drum reaches to HRC40°± 2°, and it can reaches to HRC68° ± 2° after Tungsten Carbide spraying on surface and surface grinding.
7. Cooling System: Drum aopts the high efficient cooling system (spiral type). Rooler Cassette adopts indirect cooling system with oil circulation.
8. Equipment for Industrial Safety is CE certificated.
9. The Other Functions: Available for drawing round wire/ribbed wire/hard wire, based on customer's choice to design the suitable machine available to install with two roller cassettes.
